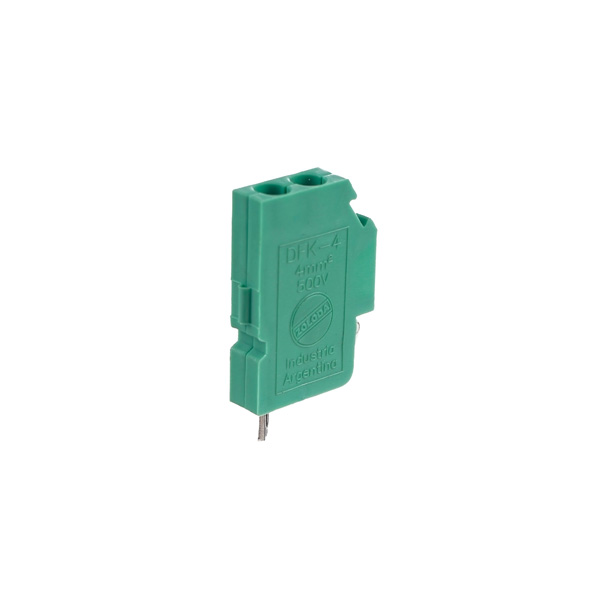

4 mm² feed-through terminal block for electronics
DFK-4
240.017
Description
Main Features
Dimensions
- Length: 21.5 mm
- Height: 36 mm
- Width: 6 mm
Material of clamping element: nickel-plated copper alloy
Material of conductive element: nickel-plated copper alloy
Insulating body material: 6.6 polyamide
Color: Green
Technical Data
Type of connection: Screw/soldering
Flexible conductor cross-section: 4 mm2
Rigid conductor cross-section: 4 mm2
Nominal voltage: 500 V AC
Nominal current: 32 A
Torque: 0.5 Nxm
Complying with standards: IEC 60947-7-1
Ambient conditions:
- Ambient temperature for assembly: From -5 ºC to +40 ºC
- Ambient temperature for operation: From -25 ºC to +110 ºC (ΔT included)
- Ambient temperature for actuation: From -5 ºC to +60 ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25 ºC to +55 ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Partition plate: Yellow, 0.7 mm-thick ATS-DFK – Gray, 2 mm-thick TP-DFK
Fixed bridge: EB-2-06
Test plug: MPS
Marking: IBC series
Screwdriver: DES-04
