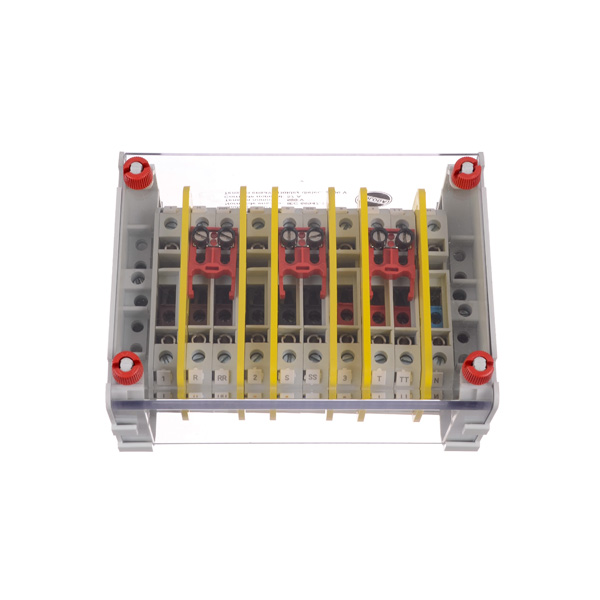

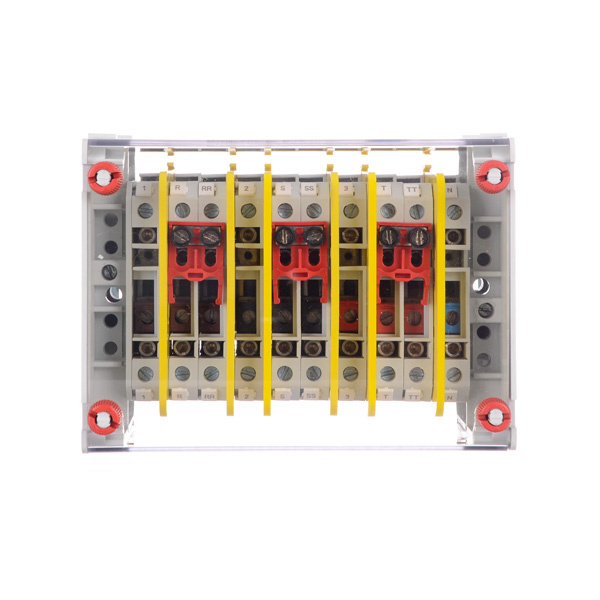

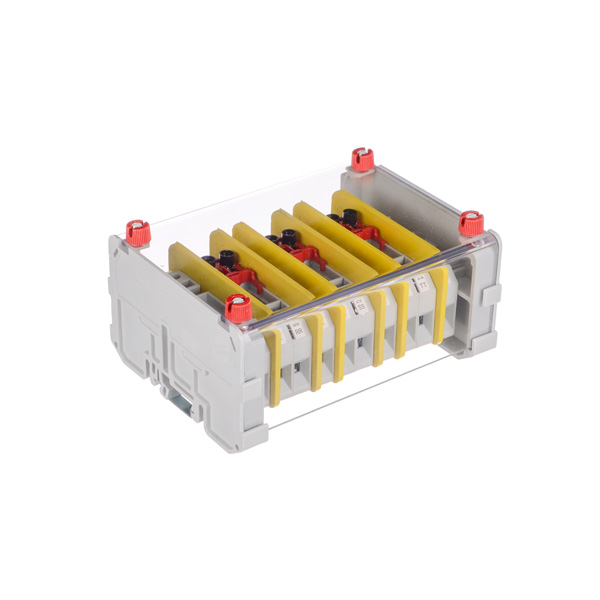

Terminal board for measuring and contrast, with slide bridge
BMC1/2
250.008
Description
Main Features
Dimensions
- Length: 114 mm
- Height: 78 mm
- Width: 153 mm
Type of connection: screw
Cross-section of flexible conductor: 1,5 a 10 mm2
Material of clamping element: Passivated trivalent chromium zinc-plated steel
Material of conductive element: tin-plated copper
Material of insulating housing: 6.6 polyamide and crystal-colored polycarbonate lid
Color: RAL7035 gray and transparent lid
Complying with standards: IEC 60947-7-1
Technical Data
Operation voltage: 500 VCA
Nominal current: 57 A
Test voltage: 2000 V
Operation temperature range: -5 °C a +50 °C
Cable clamp / disconnector torque: 1,2/0,8 Nxm
