Description

Main Features

Dimensions

• Base: 30 mm
• Height: 12 mm
• Trunking length: 2 m

Self-adhesive tape on the base: yes

Divider: no

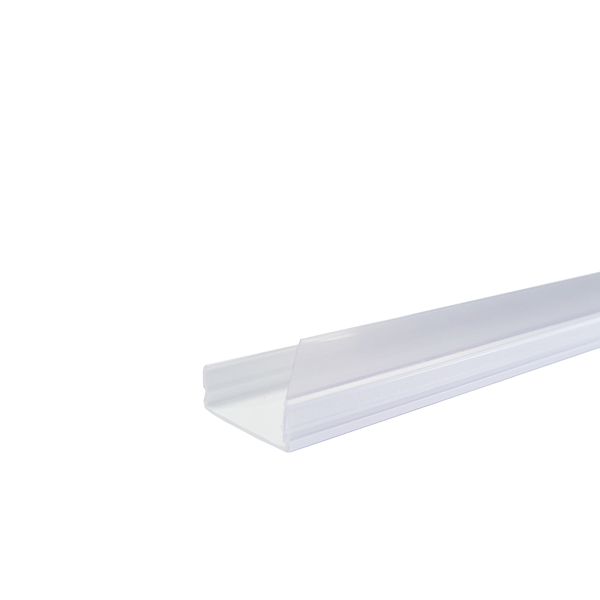

Construction material:

• Base: white PVC
• Cover: crystal PVC

Color:

• Base: White
• Cover: translucent frosted-glass effect

Complying with standards: IRAM 62084-1, 62084-2-1; IEC 61084-1, 61084-2-1

Also, consideration should be given to the fact that the technician in charge of the installation is responsible for selecting the required technical features of the LED strip to be installed, as well as for deciding on the appropriate location to install the system.

Technical data

Effective cross-section: 255 mm²

Protection against corrosive or contaminant substances: Low (internal and external)

Operating temperature range: -5 °C to +60 °C

Flame retardant: Self-extinguishing V0 (UL-94)

Maximum temperature resistance: 650 °C

Flame resistant: 1 kW burner

Insulation resistant: Over 100 MΩ

Protection rate: IP-41

Accessories

Adapter: AD-3012-BL

Box: TKN-BL – TKN-C-BL (with cover)

Bend: ELE-3012-BL

Angle: LS-3012-BL

End cap: E-3012-BL

Corner: RI-3012-BL

Tee: TE-3012-BL

Joint: U-3012-BL

Other accessories:

Self-adhesive tape: CDF-1205 (5 m) – CDF-1210 (10 m)
