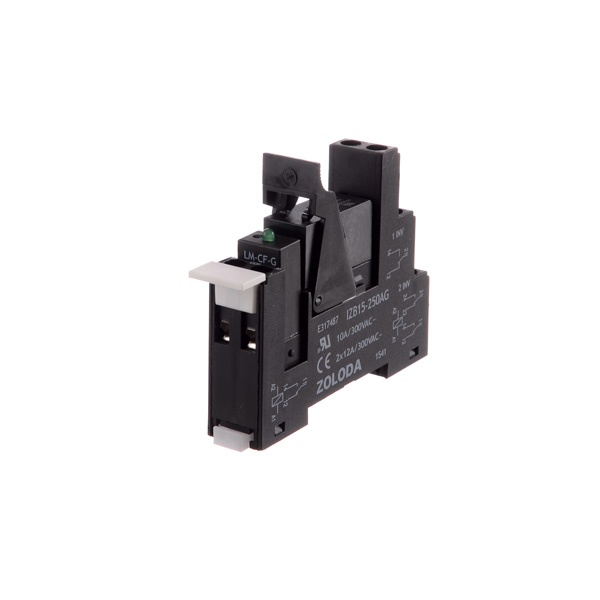

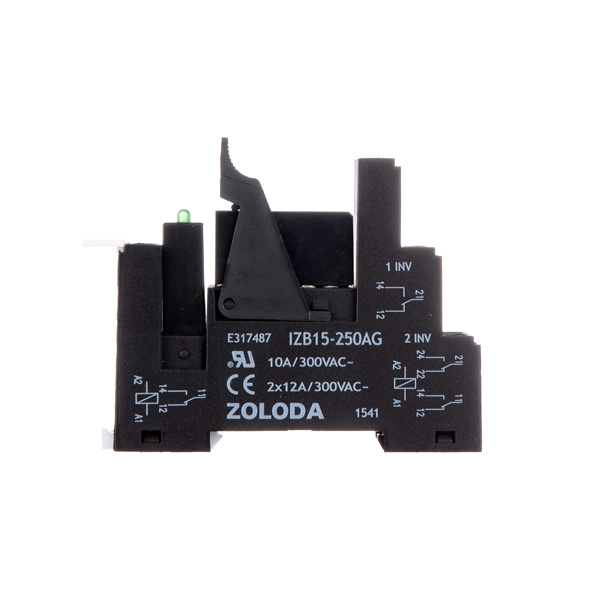

Screw electromechanical interface, 15.6 mm, 2 changeover contacts, 12 V CC (+A1-A2) input, 250 Volt output, 2×8 A, flange and module with diode and LED
IZEB15-250AG-012JN-2502I08
221.129
Description
Main features
Dimensions
- Length: 83 mm
- Height: 65 mm
- Width: 15.6 mm
Enclosure material: Polyamide V0
In compliance with: UL 508A | IEC 60664-1 | IEC 61984
Technical data
Input voltage: 12 V CC
Output current: 8 A
Output voltage: 250 V CA
Number of contacts: 2 changeover contact
Type of connection: Screw
Operating temperature: -25 a 70 °C
Mechanical durability of contacts: 1×107 operations
Degree of protection: IP20
Cable cross-section inputs/outputs: 1.5-2.5 mm2
Torque: 0.5-0.7 Nxm
Accesorios
Relay: RZE012CN-2502|08A
Bridge: CB-PI-8
Partition: SE2-D (yellow) | SE2-D-GR
Tag: CW-IZ
Screwdriver: DES-04
