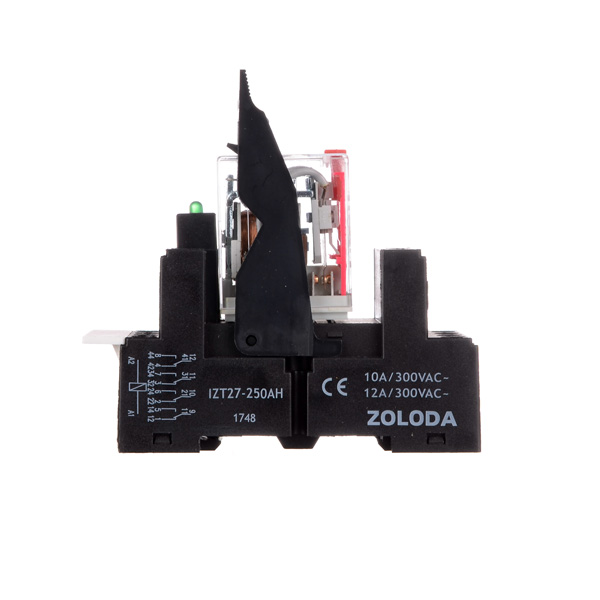

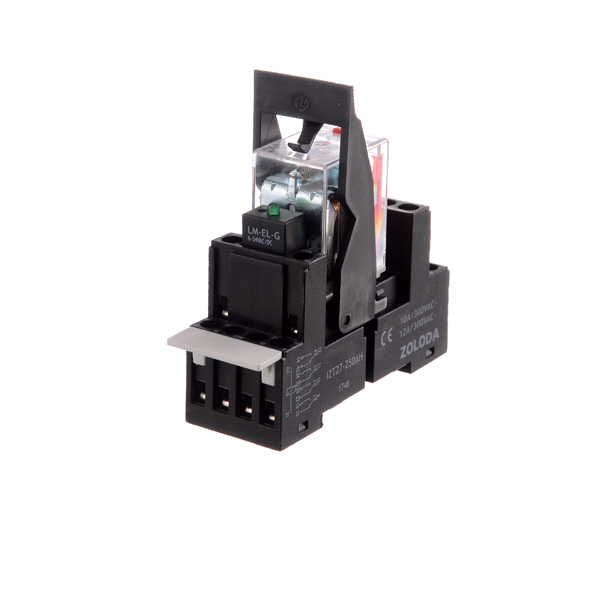

Screw electromechanical interface, 27 mm, 4 changeover contacts, 24 V AC input, 250 Volt output, 4×5 A, flange and module with diode and LED
Screw electromechanical interface, 27 mm, 4 changeover contacts, 24 V AC input, 250 Volt output, 4×5 A, flange and module with diode and LED

Screw electromechanical interface, 27 mm, 4 changeover contacts, 24 V AC input, 250 Volt output, 4×5 A, flange and module with diode and LED

IZET27-250AH-024GN-2504I05

221.149

SKU: IZET27-250AH-024GN-2504I05 | 221.149 Category:

Description

Main features

Dimensions

  • Length: 75 mm
  • Height: 80 mm
  • Width: 27 mm

Enclosure material: Polyamide V0

Complying with standards: UL 508A | IEC 60664-1 | IEC 61984

Technical data

Input voltage: 24 V CA

Output current: 5 A

Output voltage: 250 V CA

Number of contacts: 4 changeover contact

Type of connection: Screw

Operating temperature: -25 a 70 °C

Mechanical durability of contacts: 1×107 operations

Degree of protection: IP20

Cable cross-section inputs/outputs: 0.2-2.5 mm2

Torque: 0.5-0.6 Nxm

Accessories

Relay: RZE024AN-2504I05A

Bridge: SE2-D (yellow) | SE2-D-GR

Partition: CW-IZ

Screwdriver: DES-04

Descargas

CAD 2D

CAD 3D

Catalog

Certificate UL

Instructivos

Instructions will be available shortly.
