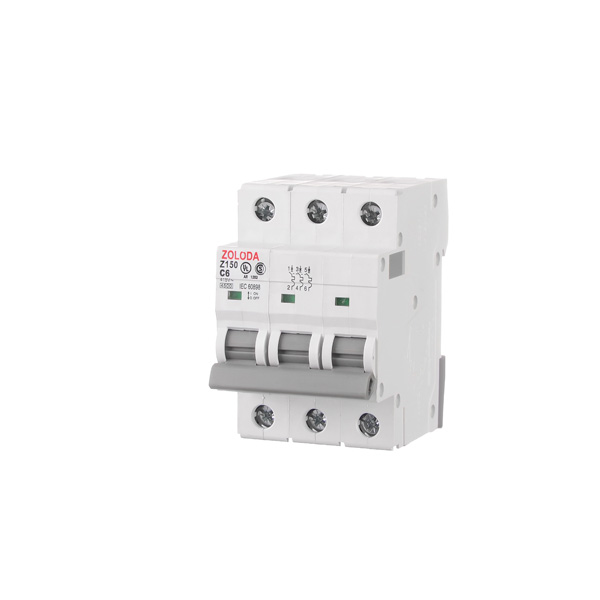

Description

Main Features

Dimensions

• Length: 81 mm
• Height: 72 mm
• Width: 53.4 mm

In compliance with: IEC 60898

Technical Data

Fixing support: NS-35 symmetrical DIN rail

Number of poles: 3

Rated voltage: 240/415 V AC

Rated current: 6 A

Residual current: 4.5 kA

Curve: C

Cress-section of flexible conductor: 1 to 25 mm²

Torque: 1.7 to 2.5 Nxm

Operating temperature: -5 °C to +40 °C

Accessories

Busbar: PCZ 3P

Busbar cover: cover PCZ 3P

Cable connector: 817.900

End: EKN1

Lockout with interlocking tabs: TC-01

Auxiliary contact: AUX-Z300 Z200

Screwdriver: DES-06

Descargas

Catalog

Certificate UL

Instructivos

Instructions will be available shortly.
