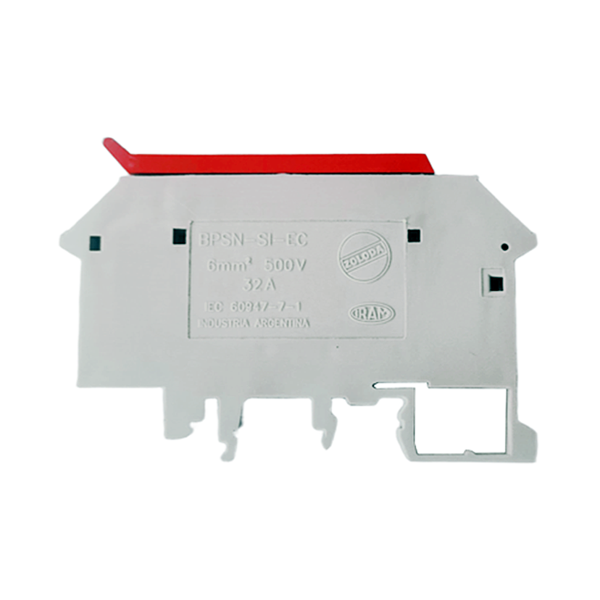

Knife disconnect terminal for 6 mm² conductor
BPSN-SI-EC
081.063
Description
Main Features
Dimensions
- Length: 78.5 mm
- Height (total opening): 105 mm
- Thickness: 10.2 mm
Material of clamping element: zinc-plated steel, trivalent chromatized passivated
Conductive element material: tinned copper
Insulating body material: polyamide 6.6
Color: gray RAL7035
Technical data
Connection type: screw
Anchor type: Symmetrical DIN rail NS-35
Flexible conductor cross-section: 6 mm2
Rigid conductor cross-section: 10 mm2
Rated voltage: 500 VAC
Current: 32 A
Torque: 0.8 Nxm
Stripping length: 11 mm
Conforming to: IEC 60947-7-3
Temperature conditions:
- Ambient temperature for assembly: From -5ºC to +40ºC
- Ambient temperature for operation: From -25ºC to +110ºC (ΔT included)
- Ambient temperature for actuation: From -5ºC to +60ºC (for disconnection devices)
- Ambient temperature for transport and storage: From -25ºC to +55ºC
Ambient permissible humidity:
- Under 50% RH at 40 °C
- From 51% to 90% at 20 °C
Maximum altitude: 2000 m over sea level
Accessories
Spacer: thickness 2.5 mm, yellow SE2 – thickness 1 mm, yellow SE2-D – thickness 1 mm, gray SE2-D-GR
Fixed bridge: P-02-08/BKNP
Numerator: Series IBC, IB
End: EKN1
Screwdriver: DES-03
