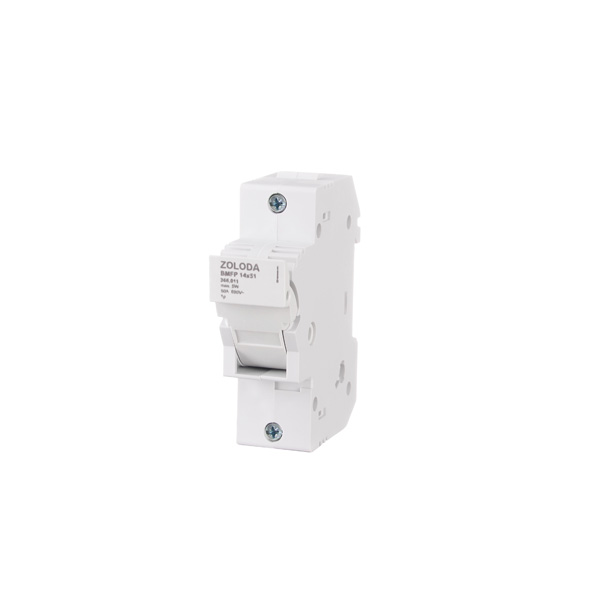

1-pole fuse holder for 14×51 mm fuses
BMFP 14X51
366.011
Description
Main Features
Dimensions
- Length: 90 mm
- Height: 76 mm
- Width: 27 mm
Technical Specifications
Operation voltage: 690 VCA
Blown fuse indicator: No.
Fuse dimensions: 14×51 mm
Working temperature: -25 a 55 °C
Poles: 1
Protection degree: IP20
Wire cross-section: 1.5-35 mm2
Torque: 2.5 – 3 Nxm
Complying with standards: IEC 60947-1 | IEC 60947-3
